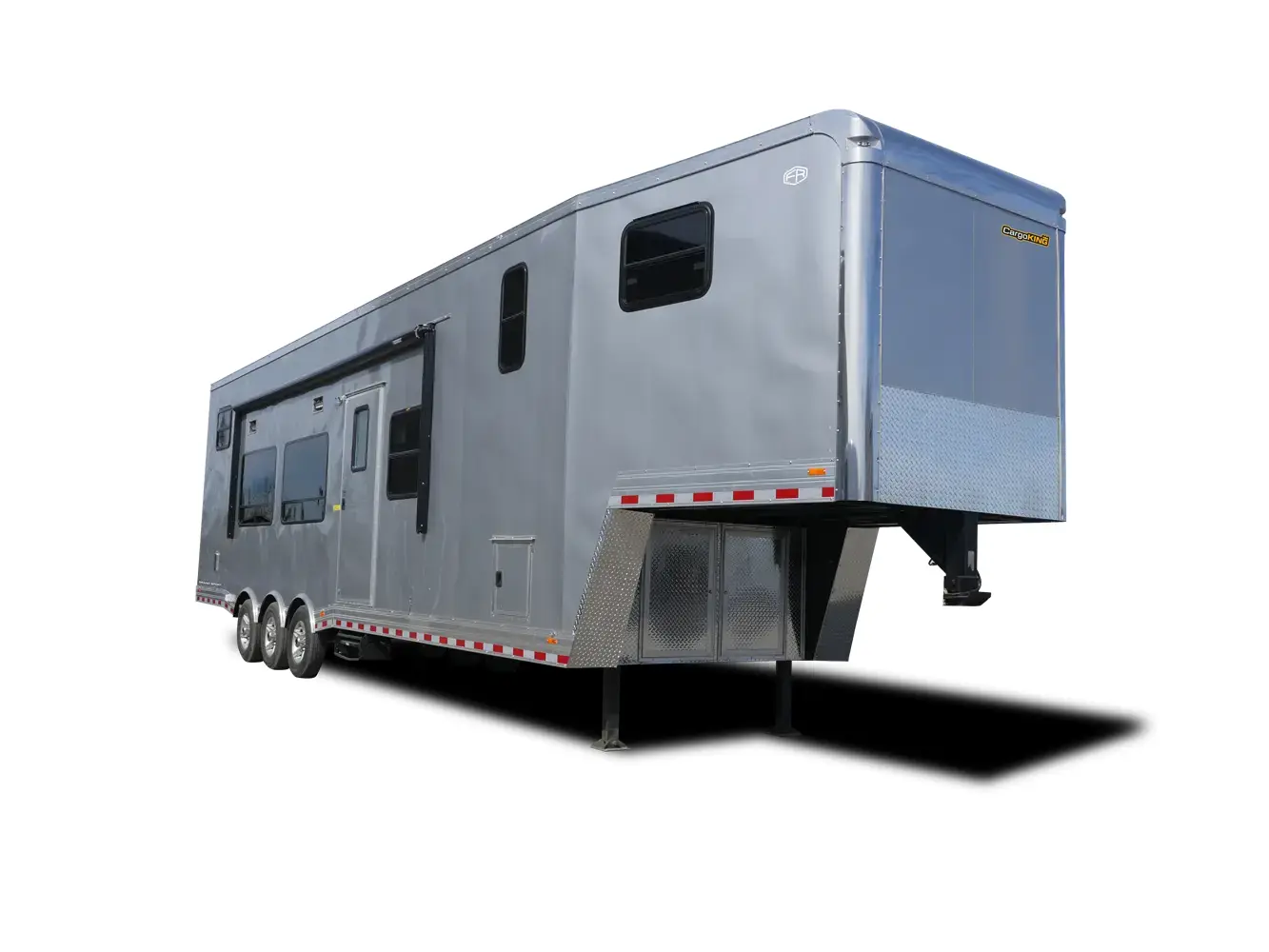

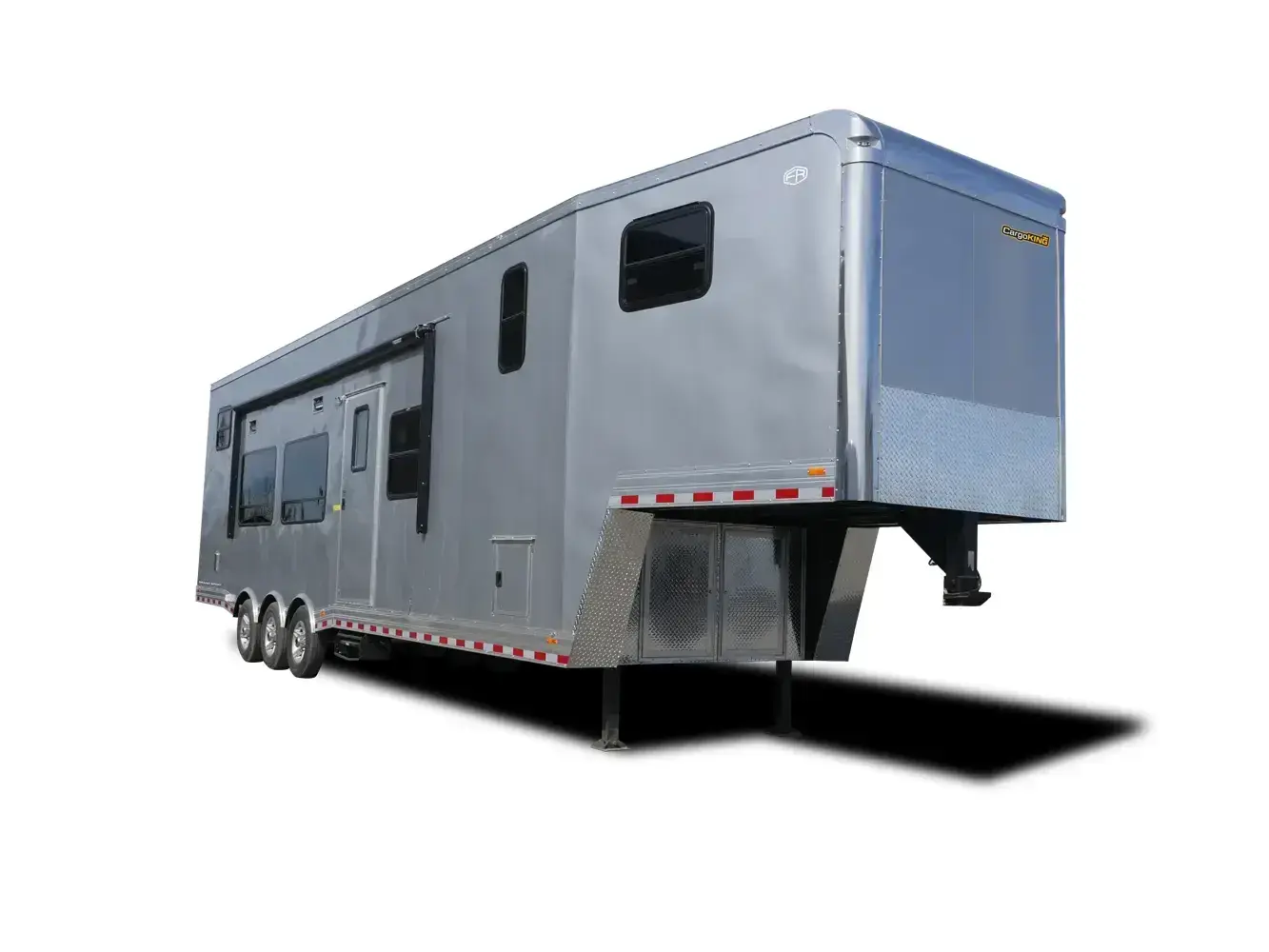

Grand Sport

From road to track. Our Grand Sport auto haulers shine above the rest giving you the capability and support you expect from a trailer bred for style and class. From car haulers to stackers, and everything in between.

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:GS8518TA2GS8520TA2GS8522TA2GS8524TA2GS8518TA3GS8520TA3GS8522TA3GS8524TA3GS8526TA3GS8528TA3GS8530TA3GS8532TA3GSG/F8534TTA3GSG/F8536TTA3GSG/F8538TTA3GSG/F8540TTA4GSG/F8542TTA4GSG/F8544TTA4GSGF8546TTA4GSG/F8548TTA4
GVWR:7000 lb.7000 lb.7000 lb.7000 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.15600 lb.15600 lb.15600 lb.18000 lb.18000 lb.18000 lb.18000 lb.18000 lb.
Payload Capacity:3760 lb.3400 lb.3040 lb.2680 lb.6524 lb.6160 lb.5796 lb.5420 lb.5068 lb.4704 lb.4340 lb.3976 lb.8200 lb.8050 lb.7900 lb.10000 lb.9700 lb.9400 lb.9100 lb.8760 lb.
Exterior Length:21' 10"23' 10"25' 10"27' 10"21' 10"23' 10"25' 10"27' 10"29' 10"31' 10"33' 10"35' 10"34' 6"36' 6"38' 6"40' 6"42' 6"44' 6"46' 6"48' 6"
Exterior Width:8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"
Exterior Height:8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 10"8' 10"8' 10"8' 10"8' 10"
Interior Length:17' 10"19' 10"21' 10"23' 10"17' 10"19' 10"21' 10"23' 10"25' 10"27' 10"29' 10"31' 10"34' 4"36' 4"38' 4"40' 4"42' 4"44' 4"46' 4"48' 4"
Interior Width:8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"8' 0"
Interior Height:6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 4"6' 4"6' 4"6' 4"6' 4"6' 4"6' 4"6' 8"6' 8"6' 8"6' 8"6' 8"
Rear Door Type:RampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRamp
Rear Door Width:7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"7' 7"0' 0"7' 7"7' 7"7' 7"
Rear Door Height:6' 4"6' 4"6' 4"6' 4"6' 4"6' 4"6' 4"6' 4"6' 2"6' 2"6' 2"6' 2"6' 2"6' 2"6' 2"6' 8"0' 0"6' 8"6' 8"6' 8"
Coupler Size:2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"
Curb Weight:3240 lb.3600 lb.3960 lb.4320 lb.3276 lb.3640 lb.4004 lb.4380 lb.4732 lb.5096 lb.5460 lb.5824 lb.7400 lb.7550 lb.7700 lb.8000 lb.8300 lb.8600 lb.8900 lb.9240 lb.
Hitch Weight:324 lb.360 lb.396 lb.432 lb.327 lb.364 lb.400 lb.450 lb.473 lb.509 lb.546 lb.580 lb.1480 lb.1510 lb.1540 lb.1600 lb.1660 lb.1720 lb.1780 lb.1848 lb.
Hitch Height:20"20"20"20"20"20"20"20"20"20"20"20"40"40"40"40"40"40"40"40"
Platform Height:18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"
Axle:35003500350035005200520052005200520052005200520052005200520060006000600060006000
Suspension:TBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBD
Brakes:ElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectric
Tires:ST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST235/80R16/DST235/80R16/DST235/80R16/DST235/80R16/DST235/80R16/D
Wheels:5 Bolt5 Bolt5 Bolt5 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt8 Bolt8 Bolt8 Bolt8 Bolt8 Bolt
Main Frame:6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam10" I-Beam10 I-Beam10" I-Beam10" I-Beam10" I-Beam
Floor:3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood
Walls:3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood

Features & Options

Print
  • 102" Wide Body Design
  • Ramp Door with Spring Assist
  • Grease Zerks on Rear Ramp Hinges
  • No-Show Beavertail
  • 48" RV Style Side Door with Flushlock & Steel Step
  • (4) LED Dome Lights w/ (2) Switches
  • Safety-Spring Chains on Side Door
  • Door Hold-Backs on All Doors
  • Torsion Wide-Track Axle
  • All-Wheel Electric Brakes with Breakaway
  • 12-Volt Breakaway Switch with Battery
  • E-Z Lube Hubs with Grease Caps
  • Aluminum Alloy Wheels
  • Radial Tires
  • One Piece Aluminum Roof
  • Heavy Duty Aluminum Top Rails
  • Insulated White Vinyl Ceiling w/ Metal Trim
  • Steel Sealed Sidewalls
  • (2) Non-Powered Roof Vents
  • 3/8" Plywood Wall Liner with Lauan Trim
  • 3/4" Plywood Floor
  • 4 – 5,000lb. Tie-Downs
  • Exterior ATP Fenders
  • 24" Aluminum Tread Plate Stoneguard
  • Stainless Steel Front Corner Posts
  • Polished Aluminum Front & Rear Corners
  • Clear Lens LED Clearance Lights
  • Clear Lens LED Strip Tail Lights
  • .030 Aluminum Exterior
  • Screwless Exterior Metal
  • Anodized Aluminum Wrap on Rear Corners
  • Urethane Coating on Tongue and Rear Member
  • Undercoated Frame
  • Tongue Jack w/ Sand Pad
  • Welded Safety Chains
