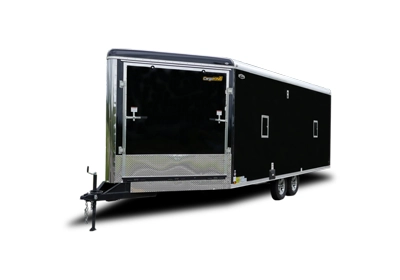

Highlander

Head for the hills. Uncompromising quality purpose built for all your snow, sand, and dirt toys. Our steel framed snowmobile trailers will keep your gear high and dry.

VIEW THE TOP REASONS TO BUY CARGO KING

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:HL8516TA2HL8524TA2HL8526TA2
GVWR:7000 lb.7000 lb.7000 lb.
Payload Capacity:4220 lb.3500 lb.3300 lb.
Exterior Length:18' 6"26' 6"28' 6"
Exterior Width:8' 6"8' 6"8' 6"
Exterior Height:9' 0"9' 0"9' 0"
Interior Length:15' 7"23' 7"25' 7"
Interior Width:8' 0"8' 0"8' 0"
Interior Height:6' 2"6' 2"6' 2"
Rear Door Type:RampRampRamp
Rear Door Width:7' 5"7' 5"7' 5"
Rear Door Height:6' 0"6' 0"6' 0"
Coupler Size:2 5/16"2 5/16"2 5/16"
Curb Weight:2780 lb.3500 lb.3700 lb.
Hitch Weight:278 lb.350 lb.370 lb.
Hitch Height:23"23"23"
Platform Height:29"29"29"
Axle:350035003500
Suspension:TBDTBDTBD
Brakes:ElectricElectricElectric
Tires:ST205/75R15/CST205/75R15/CST205/75R15/C
Wheels:5 Bolt5 Bolt5 Bolt
Main Frame:6" I-Beam6" I-Beam6" I-Beam
Floor:Treated 3/4" PlywoodTreated 3/4" PlywoodTreated 3/4" Plywood
Walls:3/16" White Vinyl3/16" White Vinyl3/16" White Vinyl

Features & Options

Print
  • 102" Wide Body Design
  • 4' Front Wedge Nose
  • Front and Rear Ramp Doors with Spring Assist
  • Grease Zerks on Ramp Hinges
  • No-Show Beavertail
  • 36" RV Style Side Door with Flush Lock and Fold-Out RV-Style Step
  • Trailers 20 ft. or Less in Length: (2) 12Volt LED Dome Lights, (1) Switch, (1) Non-Powered Roof Vent, and (6) 2,000 lb. Floor Mount D-Rings
  • Trailers 22 ft. or More in Length: (4) 12Volt LED Dome Lights, (2) Switch, (2) Non-Powered Roof Vent, and (9) 2,000 lb. Floor Mount D-Rings
  • Semi-Style Camlock Door Latches
  • Safety-Spring Chains on Side Door
  • Door Hold-Backs on All Doors
  • Torsion Axle
  • All-Wheel Electric Brakes with Breakaway
  • 12-Volt Breakaway Switch with Battery
  • E-Z Lube Hubs with Grease Caps
  • Steel Sealed Sidewalls
  • Aluminum Alloy Wheels
  • Chrome Center Caps
  • Radial Tires
  • Aluminum Roof
  • .090 Heavy Duty Aluminum Top Wrap
  • 3/8" Plywood Kickplate on Interior Walls
  • 3/16" White Vinyl Wall and Ceiling Liner
  • 24" Aluminum Tread Plate Stoneguard
  • .030 Alum. Exterior
  • Screwless Exterior Metal
  • Anodized Aluminum Wrap on rear
  • Urethane Coating on Tongue and Rear Member
  • Undercoated Frame
  • Tongue Jack w/ Sand Pad
  • Welded Safety Chains
  • Clear Lens LED Clearance Lights
  • Clear Lens LED Strip Tail Lights
  • Finished ceiling (2)
  • 4' Fluorescent Lights with (1) Wall Switch
  • (2) Interior Wall Recepts
  • Exterior Wall Recept with GFI
  • Lifeline and Motorbase Plug
  • All 110-Volt Packages require a finished ceiling
  • All 110-Volt Packages require a finished ceiling
  • (5) 4' Fluorescent Lights with (1) Wall Switch
  • (2) 500-Watt Recessed Quartz Lights with (1) Wall Switch
  • (2) Interior Wall Recepts
  • Exterior Wall Recept with GFI
  • 30-Amp Breaker Panel with Lifeline and Motorbase Plug
  • Adds all items in the 110V Racer's Package
  • Heavy Duty 8" Extruded Base Trim
  • .040 Exterior Metal (White or Black)
  • Rubber Floor Covering Front 8' w/ATP Rear and on Ramp
  • Double 24" RV Doors with Piano Hinges and Flush Lock
  • L-Shaped Base Cabinet with Overhead and Wardrobe
  • Glued Interior Aluminum Wall Panels
  • Freezer-Type Ramp Door Latches
  • Race Mate (4) Piece Accessory Pack
  • 36" x 24" Vented Generator Door
  • White Aluminum Wall Liner
  • Vinyl Flooring (Specify Color)
  • Aluminum Tread Plate on Ramp and Flap
  • 30 Gallon Fuel Tank
  • Fuel Fill
  • Pumping Station
  • Timer Switch
  • Under Floor Storage
  • Runs on 12V System
  • 16" O/C Roof
  • 16" O/C Floor Members
  • 60" Triple Tube Tongue
  • 3/4" Plywood Walls
  • (2) LED Loading Lights with switch
  • (2) 2-Way Sidewall Vents (Aluminum)
  • (3) Aluminum Ladder Rack Sections
