Explore Grand Sport Aluminum

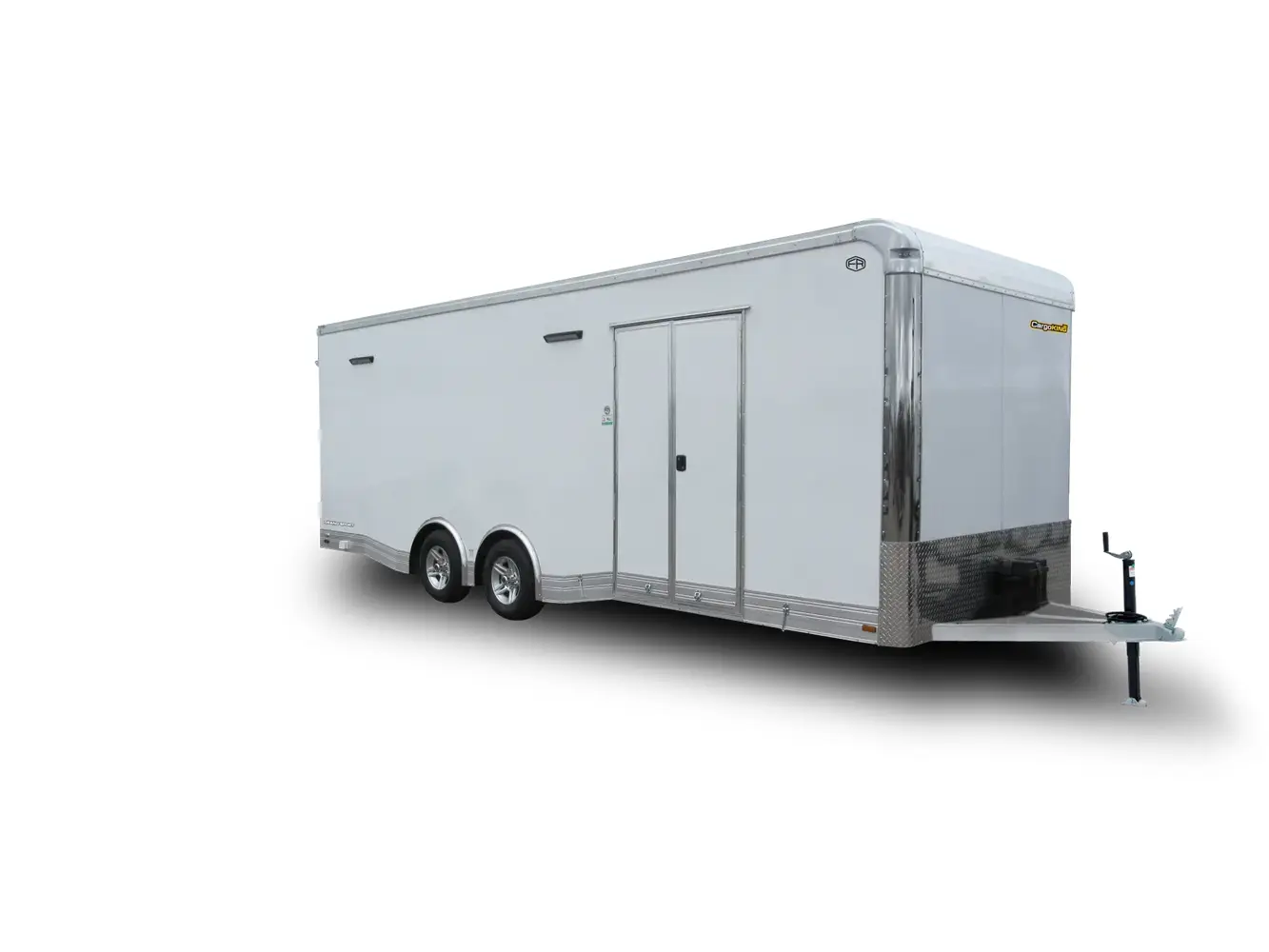

Grand Sport-Aluminum
From road to track. Our Grand Sport all aluminum frame auto haulers shine above the rest giving you the capability and support you expect from a trailer bred for style and class. From car haulers to stackers, and everything in between.
-
- All Aluminum Tube Frame
- Aluminum Alloy Wheels With Radial Tires
- 16” O/C Floor Crossmembers
- Triple Tube Tongue
- 16” O/C Wall And Roof Studs
- 102” Wide Body Design
- Ramp Door With Spring Assist
- No Show Beaver Tail
- Torsion Wide Track Axles
- All Wheel Electric Brakes With Breakaway Kit
- E-Z Lube Hubs With Grease Caps
- Insulated White Vinyl Ceiling With Aluminum Trim
- Premium Plywood Floor With (4) 5k D-Rings
- Polished 24” ATP Front Stoneguard
- Bonded (.030) Exterior Aluminum Skin
- (1) Piece Aluminum Roof
- Polished Cast Aluminum Front And Rear Corners
- Stainless Steel Front Corner Radius
- Heavy Duty 4” Exterior Bottom Trim
- (2) Roof Vents
- All LED Exterior Lighting
- (4) LED Dome Lights With Two Switches
-
- All 110-Volt Packages require a finished ceiling
- (2) 4' Fluorescent Lights with (1) Wall Switch
- (2) Interior Wall Recepts
- Exterior Wall Recept with GFI
- With Lifeline and Motorbase Plug
- All 110-Volt Packages require a finished ceiling
-
- All 110-Volt Packages require a finished ceiling
- (5) 4' Fluorescent Lights with (1) Wall Switch
- (2) 500-Watt Recessed Quartz Lights with (1) Wall Switch
- (2) Interior Wall Recepts
- Exterior Wall Recept with GFI
- 30-Amp Breaker Panel with Lifeline and Motorbase Plug
-
- Adds all items in the 110V Racer's Package
- Heavy Duty 8" Extruded Base Trim
- .040 Exterior Metal (White or Black)
- Rubber Floor Covering Front 8' w/ATP Rear and on Ramp
- Double 24" RV Doors with Piano Hinges and Flush Lock
- L-Shaped Base Cabinet with Overhead and Wardrobe
- Glued Interior Aluminum Wall Panels
- Freezer-Type Ramp Door Latches
- Race Mate (4) Piece Accessory Pack
- 36" x 24" Vented Generator Door
-
- (ONLY avail. on GrandSport Models)
- White Aluminum Wall Liner
- Vinyl Flooring (Specify Color)
- Aluminum Tread Plate on Ramp and Flap
-
- (Requires 7" frame or larger)
- 30 Gallon Fuel Tank
- Fuel Fill
- Pumping Station
- Timer Switch
- Under Floor Storage
- Runs on 12V System
-
- 36" RV Side Door ILO 48"
- Deck Over Floor (No Interior Wheel Box)
- 12" ATP Kickplate
- 5" Wedge Front (Slant Wedge Delete For Tall Ramp)
- Front Ramp Door In Wedge
- 5,000 lb. D-Ring Tie-Downs (9 Total)
- Pressure Treated Flooring and Ramps
- (1) 48" Overhead Cabinet
- (1) 48" Stainless Helmet Rack
- Stabilizer Jacks Under Rear Corners
- LED Dome Lights (6 Total)
-
- 36" RV Side Door ILO 48"
- Rampover Interior Wheel Boxes
- 5" Wedge Front (Slant Wedge Delete For Tall Ramp)
- Front Ramp Door In Wedge
- 5,000 lb. D-Ring Tie-Downs (9 Total)
- (1) 48" Overhead Cabinet
- Stabilizer Jacks Under Rear Corners
- LED Dome Lights (6 Total)
Specifications
| GSA8518TA2 | GSA8520TA2 | GSA8522TA2 | GSA8522TA3 | GSA8524TA3 | GSA8526TA3 | GSA8528TA3 | |
| GVWR: | 7000 lb. | 7000 lb. | 7000 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. |
| Payload Capacity: | 3925 | 3550 | 3225 | 6000 | 5700 | 5400 | 5000 |
| Exterior Length: | 22' 0" | 24' 0" | 26' 0" | 26' 0" | 28' 0" | 30' 0" | 32' 0" |
| Exterior Width: | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" |
| Exterior Height: | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" |
| Interior Length: | 18' 0" | 20' 0" | 22' 0" | 22' 0" | 24' 0" | 26' 0" | 28' 0" |
| Interior Width: | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" |
| Interior Height: | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" |
| Rear Door Type: | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp |
| Rear Door Width: | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" |
| Rear Door Height: | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Coupler Size: | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" |
| Curb Weight: | 3075 | 3450 | 3775 | 3800 | 4100 | 4400 | 4800 |
| Hitch Weight: | 310 | 350 | 380 | 380 | 410 | 440 | 480 |
| Hitch Height: | 16" | 16" | 16" | 16" | 16" | 16" | 16" |
| Platform Height: | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Axle: | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-5200 lbs | 2-5200 |
| Suspension: | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Brakes: | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Tires: | ST205/75R15LRC | ST205/75R15LRC | ST205/75R15LRC | ST225/75R15D | ST225/75R15D | ST225/75R15D | ST225/75R15D |
| Wheels: | 5 Bolt | 5-Bolt | 5-Bolt | 6-Bolt | 6-Bolt | 6-Bolt | 6-Bolt |
| Main Frame: | 2 x 7 Dbl. Hollow | 2 x 7 Dbl Hollow | 2 x 7 Dbl Hollow | 2 x 7 Dbl Hollow | 2 x 7 Dbl Hollow | 2 x 7 Dbl Hollow | 2 x 7 Dbl Hollow |
| Floor: | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood |
| Walls: | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood |
