Explore Slingshot

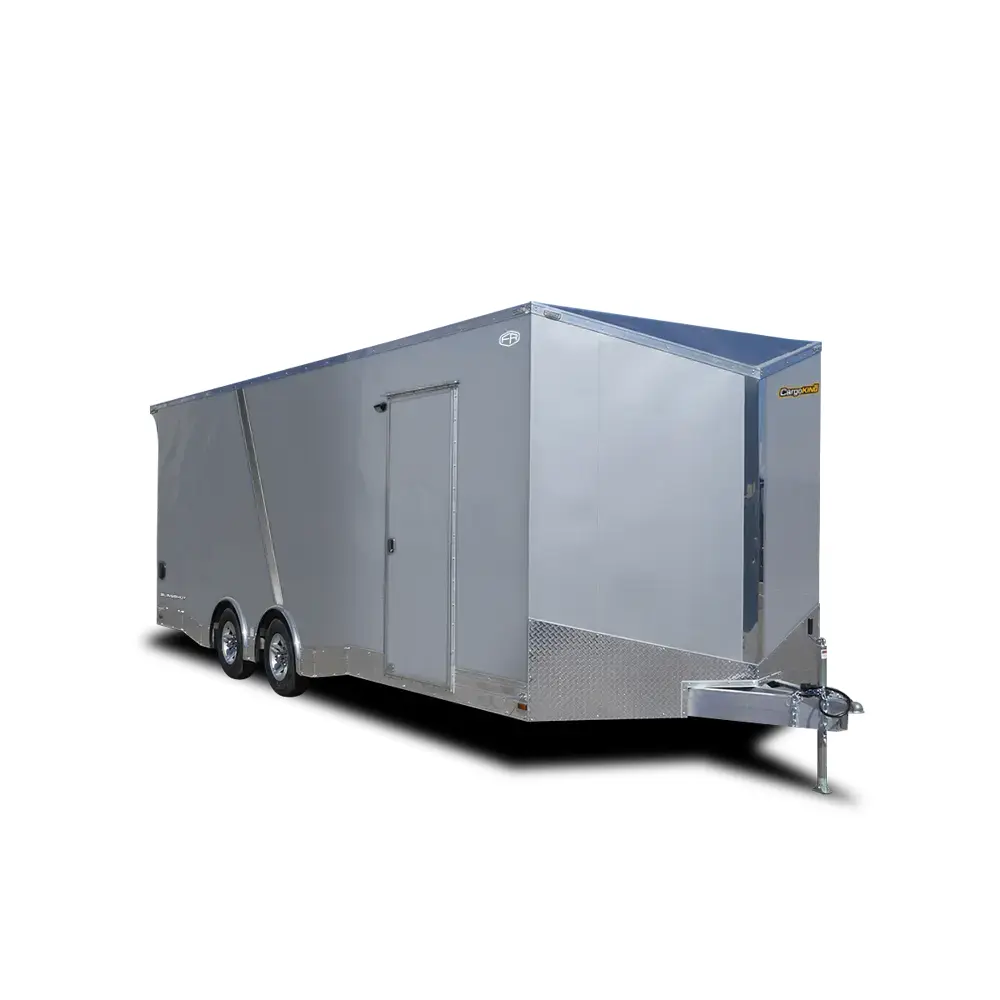

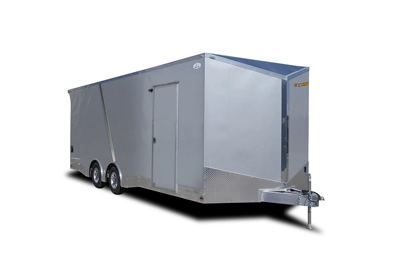

Slingshot-Aluminum
Our most versatile product line. With industry leading standard features and hundreds of options available. This model combines maximum performance with cutting edge technology.
-
- 16” O/C Aluminum Studs In Wall, Roof,& Floor
- Aerodynamic 24” Slanted Wedge Front
- Independent Torsion Axle w/EZ Lube Hubs
- Aluminum Alloy Wheels With Radial Tires
- Ramp Door W/Flap Standard (Optional Aluminum Frame Double Doors / No Added Charge)
- 3/4” Plywood Floor
- “Insulated” White Vinyl Wall W/ Alum Trim
- “Insulated” White Vinyl Ceiling W/ Alum Trim
- RV Style Door With Flushlock
- 24” Slanted ATP Stoneguard
- Bonded .030 Aluminum Exterior
- One Piece Aluminum Roof
- (2) LED Interior Dome Light w/Switch
- LED Exterior Lights
- (1) Roof Vent
- 8’ 6” Wides Include
- Heavy Duty Triple Tube Tongue
- Beavertail
- 2 Extra LED Dome Lights & Switch (4 Lights, 2 Switch, Total)
- 1 Additional Roof Vent (2 Total)
- 2 Flowthru Sidewall Vents
- (4) 5K D-Rings
Specifications
| SLA58SA | SLA510SA | SLA512SA | SLA514SA | SLA68SA | SLA610SA | SLA612SA | SLA614SA | SLA610TA2 | SLA612TA2 | SLA614TA2 | SLA616TA2 | SLA710TA2 | SLA712TA2 | SLA714TA2 | SLA716TA2 | SLA8516TA2 | SLA8518TA2 | SLA8520TA2 | SLA8522TA2 | SLA8524TA2 | SLA8520TA3 | SLA8522TA3 | SLA8524TA3 | SLA8526TA3 | SLA8528TA3 | SLA8530TA3 | SLA8532TA3 | |
| GVWR: | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. | 9800 lb. |
| Payload Capacity: | 2240 | 2140 | 2065 | 1990 | 2090 | 2040 | 1990 | 1915 | 5700 | 5600 | 5500 | 5400 | 5500 | 5425 | 5350 | 5250 | 4800 | 4700 | 4600 | 4500 | 4300 | 6950 | 6850 | 6750 | 6650 | 6525 | 6350 | 6125 |
| Exterior Length: | 12' 0" | 14' 0" | 16' 0" | 18' 0" | 12' 0" | 14' 0" | 16' 0" | 18' 0" | 14' 0" | 16' 0" | 18' 0" | 20' 0" | 14' 0" | 16' 0" | 18' 0" | 20' 0" | 20' 0" | 22' 0" | 24' 0" | 26' 0" | 28' 0" | 24' 0" | 26' 0" | 28' 0" | 30' 0" | 32' 0" | 34' 0" | 36' 0" |
| Exterior Width: | 6' 10" | 6' 10" | 6' 10" | 6' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" |
| Exterior Height: | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 7' 11" | 7' 11" | 7' 11" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 1" | 8' 1" | 8' 1" | 8' 2" | 8' 11" | 8' 11" | 8' 11" | 8' 11" | 8' 11" | 8' 11" | 8' 11" | 8' 11" | 8' 11" | 8' 11" | 8' 11" | 8' 11" |
| Interior Length: | 9' 8" | 11' 8" | 13' 8" | 15' 8" | 9' 8" | 11' 8" | 13' 8" | 15' 8" | 11' 8" | 13' 8" | 15' 8" | 17' 8" | 11' 8" | 13' 8" | 15' 8" | 17' 8" | 17' 8" | 19' 8" | 21' 8" | 23' 8" | 25' 8" | 21' 8" | 23' 8" | 25' 8" | 27' 8" | 29' 8" | 31' 8" | 33' 8" |
| Interior Width: | 4' 9" | 4' 9" | 4' 9" | 4' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 8' 1" | 8' 1" | 8' 1" | 8' 1" | 8' 1" | 8' 1" | 8' 1" | 8' 1" | 8' 1" | 8' 1" | 8' 1" | 8' 1" |
| Interior Height: | 5' 0" | 5' 0" | 5' 0" | 5' 0" | 6' 1" | 6' 1" | 6' 1" | 6' 1" | 6' 1" | 6' 1" | 6' 1" | 6' 1" | 6' 1" | 6' 1" | 6' 1" | 6' 1" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" |
| Rear Door Type: | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp |
| Rear Door Width: | 4' 3" | 4' 3" | 4' 3" | 4' 3" | 5' 4" | 5' 4" | 5' 4" | 5' 4" | 5' 4" | 5' 4" | 5' 4" | 5' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 7' 8" | 7' 8" | 7' 8" | 7' 8" | 7' 8" | 7' 8" | 7' 8" | 7' 8" | 7' 8" | 7' 8" | 7' 8" | 7' 8" |
| Rear Door Height: | 4' 9" | 4' 9" | 4' 9" | 4' 9" | 5' 10" | 5' 10" | 5' 10" | 5' 10" | 5' 10" | 5' 10" | 5' 10" | 5' 10" | 5' 10" | 5' 10" | 5' 10" | 5' 10" | 6' 11" | 6' 11" | 6' 11" | 6' 11" | 6' 11" | 6' 11" | 6' 11" | 6' 11" | 6' 11" | 6' 11" | 6' 11" | 6' 11" |
| Coupler Size: | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" |
| Curb Weight: | TBD | TBD | 925 | 1000 | 900 | 950 | 1000 | 1075 | 1300 | 1400 | 1500 | 1600 | 1500 | 1575 | 1650 | 1750 | 2200 | 2300 | 2400 | 2500 | 2700 | 2850 | 2950 | 3050 | 3150 | 3275 | 3450 | 3675 |
| Hitch Weight: | 90 | 102 | 111 | 120 | 108 | 114 | 120 | 129 | 156 | 168 | 180 | 192 | 180 | 189 | 198 | 210 | 264 | 276 | 288 | 300 | 324 | 342 | 354 | 366 | 378 | 20 | 414 | 441 |
| Hitch Height: | 14" | 14" | 14" | 14" | 14" | 14" | 14" | 15" | 15" | 15" | 15" | 15" | 19" | 19" | 19" | 20" | 18" | 18" | 18" | 18" | 18" | 20" | 20" | 20" | 20" | 20" | 20" | 20" |
| Platform Height: | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 19 | 19 | 19 | 19 | 19 | 22 | 22 | 22 | 23 | 21 | 21 | 21 | 21 | 23 | 23 | 23 | 23 | 23 | 23 | 23 | 23 |
| Axle: | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-3500 lbs | 2-5200 lbs | 2-5200 lbs | 2-5200 lbs | 2-5200 lbs | 2-5200 lbs | 2-5200 | 2-5200 lbs |
| Suspension: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Brakes: | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Tires: | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST225/75R15/C | ST225/75R15/C | ST225/75R15 | ST225/75R15/C | ST225/75R15/C |
| Wheels: | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 5 Bolt Aluminum | 6 Bolt Aluminum | 6 Bolt Alum | 6 Bolt Alum | 6 Bolt Alum | 6 Bolt Alum | 6 Bolt Alum | 6 Bolt Alum |
| Main Frame: | 2" x 3" Tube | 2" x 3" Tube | 2" x 3" Tube | 2" x 3" Tube | 2" x 3" Tube | 2" x 3" Tube | 2" x 3" Tube | 2" x 4" Tube | 2" x 4" Tube | 2" x 4" Tube | 2" x 4" Tube | 2" x 4" Tube | 2" x 4" Tube | 2" x 4" Tube | 2" x 4" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 5" Tube | 2" x 7" Tube | 2" x 7" Tube | 2" x 7" Tube | 2" x 7" Tube | 2" x 7" Tube | 2" x 7" Tube | 2" x 7" Tube |
| Floor: | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood |
| Walls: | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl | White Vinyl |
