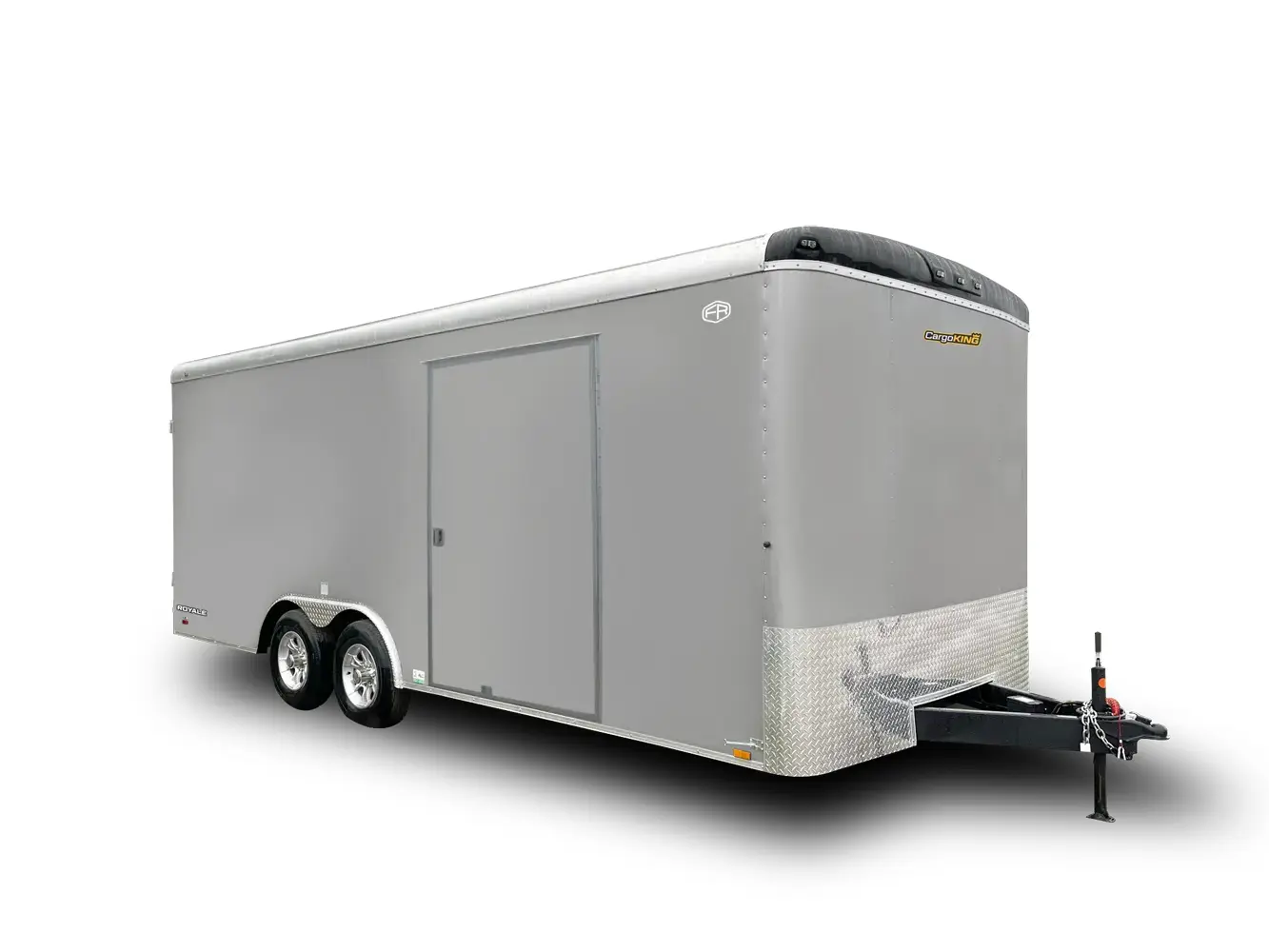

Royale
When only the best will do. Royale cargo trailers offer the most standard features and industry leading quality. All who cast their eyes upon them will envy and admire.
-
- Ramp Rear Door
- RV Style C/S Door (24" on 5 wide , 32" on 6 wide, 36" on 7, 8, 8.5 wide)
- Door Hold-Back on Side Door
- Torsion Axle
- E-Z Lube Hubs with Grease Caps
- Aluminum Alloy Wheels
- Radial Tires
- 2 –LED Dome Lights / 22' And Up (4)
- 1 – Wall Switch / 22' And Up (2)
- 1 – Roof Vent
- One Piece Aluminum Roof
- .090 Mill-Finish Aluminum Top Wrap
- 3/8" Plywood Wall Liner with Lauan Trim
- White Vinyl Ceiling With Aluminum Trim
- Radius Fiberglass Front Cap
- 24" ATP Stoneguard
- 3/4" Plywood Floor
- .030 Aluminum Exterior
- Screwless Exterior Metal
- Urethane Coating on Tongue and Rear Member
- Undercoated Frame
- Clear Lens LED Clearance Lights
- Clear Lens LED Strip Tail Lights
- Anodized Rear Hoop
- Tongue Jack w/ Sand Pad
- Welded Safety Chains
- All 8.5 Wide Include Beavertail Rear End
Specifications
| RY58SA | RY510SA | RY68SA | RY610SA | RY612SA | RY614SA | RY710TA2 | RY712TA2 | RY714TA2 | RY716TA2 | RY816TA2 | RY8516TA2 | RY8518TA2 | RY8520TA2 | RY8522TA2 | RY8524TA2 | RY8526TA3 | RY8528TA3 | RY8530TA3 | RY8532TA3 | RYG/F8534TTA3 | RYG/F8536TTA3 | RYG/F8538TTA3 | RYG/F8540TTA4 | |
| GVWR: | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 9800 lb. | 9800 lb. | 4140 lb. | 9800 lb. | 15600 lb. | 15600 lb. | 15600 lb. | 18000 lb. |
| Payload Capacity: | 1950 | 1830 | 1890 | 1790 | 1690 | 1590 | 5460 | 5160 | 4860 | 4510 | 4400 | 4400 | 4240 | 4080 | 3920 | 3760 | 6060 | 5860 | 5660 | 5460 | 10000 | 9800 | 9600 | 11500 |
| Exterior Length: | 11' 10" | 13' 10" | 11' 10" | 13' 10" | 15' 10" | 17' 10" | 13' 10" | 15' 10" | 17' 10" | 19' 10" | 19' 10" | 19' 10" | 21' 10" | 23' 10" | 25' 10" | 27' 10" | 29' 10" | 31' 10" | 33' 10" | 35' 10" | 34' 6" | 36' 6" | 38' 6" | 40' 6" |
| Exterior Width: | 7' 0" | 7' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" |
| Exterior Height: | 6' 5" | 6' 5" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 9' 0" |
| Interior Length: | 8' 7" | 10' 7" | 8' 7" | 10' 7" | 12' 7" | 14' 7" | 10' 7" | 12' 7" | 14' 7" | 16' 7" | 16' 7" | 16' 7" | 18' 7" | 20' 7" | 22' 7" | 24' 7" | 26' 7" | 28' 7" | 30' 7" | 32' 7" | 34' 4" | 36' 4" | 38' 4" | 40' 4" |
| Interior Width: | 4' 8" | 4' 8" | 5' 8" | 5' 8" | 5' 8" | 5' 8" | 6' 8" | 6' 8" | 6' 8" | 6' 8" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" |
| Interior Height: | 4' 10" | 4' 10" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 9" | 6' 9" | 6' 9" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 7" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 9" |
| Rear Door Type: | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Double | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp |
| Rear Door Width: | 4' 4" | 4' 4" | 5' 4" | 5' 4" | 5' 4" | 5' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 7' 1" | 7' 7" | 7' 7" | 7' 7" | 7' 7" | 7' 7" | 7' 7" | 7' 7" | 7' 7" | 7' 7" | 7' 7" | 7' 7" | 7' 7" | 7' 7" |
| Rear Door Height: | 4' 2" | 4' 2" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 6' 0" | 6' 9" | 6' 0" | 5' 10" | 5' 11" | 6' 2" | 6' 2" | 6' 2" | 6' 2" | 6' 7" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 4" | 6' 6" |
| Coupler Size: | 2" | 2" | 2" | 2" | 2" | 2" | 2 5/16" | 2" | 2 5/16" | 2" | 2 5/16" | 2-5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2-5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" |
| Curb Weight: | 1040 | 1160 | 1100 | 1200 | TBD | 1400 | 1540 | 1840 | 2140 | 2490 | 2600 | 2600 | TBD | 2920 | 3080 | TBD | 3740 | 3940 | 4140 | 4340 | 5600 | 5800 | 6000 | 6500 |
| Hitch Weight: | 104 | 116 | 110 | 120 | 130 | 140 | 154 | 184 | 214 | 249 | 260 | 260 | 276 | 292 | 308 | 324 | 374 | 394 | 414 | 434 | 1120 | 1160 | 1200 | 1300 |
| Hitch Height: | 18" | 17" | 17" | 17" | 17" | 17" | 18" | 18" | 18" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 22" | 22" | 22" | 22" | 40" | 40" | 40" | 40" |
| Platform Height: | 17 | 17 | 17 | 17 | 17 | 17 | 18 | 18 | 18 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 24 |
| Axle: | 2990 | 2990 | 2990 | 2990 | 2990 | 2990 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 5200 | 5200 | 5200 | 5200 | 5200 | 5200 | 5200 | 6000 |
| Suspension: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Brakes: | Optional | Optional | Optional | Optional | Optional | Optional | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Tires: | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST235/80R16/D |
| Wheels: | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 8 Bolt |
| Main Frame: | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 4" Tube | 4" Tube | 4" Tube | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 6" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 8" I-Beam | 10" I-Beam |
| Floor: | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood | 3/4" Plywood |
| Walls: | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood | 3/8" Plywood |
